Internal And External Component Part 5( Monitor, Printer and Type of Printer)

Internal And External Component Part 5( Monitor, Printer and Type of Printer)

           VDU-Visual Display Unit to Display.

A  monitor is an Associate in Nursing output device that displays data in pictorial type. A monitor typically contains the show device, circuitry, casing, and power offer, Older monitors used a ray tube (CRT).

A monitor is measured by the subsequent parameters:

  1. luminosity is measured in candelas per square meter (cd/m2 additionally known as a Nit).
  2. magnitude relation|ratio} is that the ratio of the horizontal length to the vertical length. Monitors typically have the ratio 4:3, 5:4, 16:10 or 16:9.
  3. seeable image size is typically measured diagonally, however the particular widths and heights area unit additional informative since they’re not suffering from the ratio within the same manner. For CRTs, the seeable size is often one in (25 mm) smaller than the tube itself.
  4. Display resolution is that the range of distinct pixels in every dimension that may be displayed.
  5. Dot pitch is that the distance between sub-pixels of identical colorise millimeters. In general, the smaller the dot pitch, the cheater the image can seem.
  6. The refresh rate is that the range of times in a very second that a show is lighted.
  7. Response time is that the time a component in a very monitor takes to travel from active (white) to inactive (black) and back to active (white) once more, measured in milliseconds.
  8. Contrast magnitude relation is that the magnitude relation of the physical property of the brightest color (white) to it of the darkest color (black) that the monitor is capable of manufacturing.
  9. Power consumption is measured in watts.
  10. Delta-E Color accuracy is measured in delta-E; the lower the delta-E, the additional correct the color illustration.
  11. The viewing angle is that the angle at that pictures on the monitor is often viewed

computer monitors, they’ll be loosely classified into 3 varieties.

  1. gas-discharge tube (Cathode Ray Tube): These monitors use the gas-discharge tube technology used most ordinarily within the producing of tv screens. In this, a stream of intense high energy electrons is employed to create pictures on a fluorescent screen.
  2. LCD (Liquid Crystal Display): liquid crystal display, additionally referred to the as a liquid diode, is one among the foremost advanced technologies on the market at the present. LED pixels organized schematically between 2|a handful|some} of clear electrodes and two polarizing filters
  3. LED (Light-Emitting Diodes): LED monitors area unit same to use a lot of lesser power than the gas-discharge tube and liquid crystal display. Thus, they’re additionally thought-about environmental friendly

 An output device where we get a hard copy (printout on paper).A printer is a vice that accepts text and graphics output from a laptop and transfers the knowledge to paper, typically to plain size sheets of paper. Printers vary in size, speed, sophistication, and cost. In general, costlier printers area unit used for higher-resolution color printing.

These  four printer qualities mostly  use:

  1. Color: Color is very important for users UN agency got to print pages for displays or maps and different pages wherever color is an element of the knowledge.
  2.  Resolution: Printer resolution (the sharpness of text and pictures on paper) is typically measured in dots per in. (dpi).
  3. Speed: speed of the printer becomes vital. cheap printers print solely regarding three to six sheets per minute. Color printing is slower. costlier printers area unit a lot of quicker.
  4. Memory: Most printers keep company with a tiny low quantity of memory that may be dilated by the user.

There are two forms of printers.

  1. Impact printers: An impact printer makes contact with the paper. it always forms the print image by pressing Associate in Nursing inked ribbon against the paper employing a hammer or pins. Following area unit some samples of impact printers.

a). Dot-Matrix Printers: The dot-matrix printer uses print heads containing from nine to twenty-four pins. These pins turn out patterns of dots on the paper to create individual characters. Dot-matrix printers area unit cheap and usually print at speeds of 100-600 characters per second

b).Daisy-wheel printers: In order to urge the standard of a kind found on typewriters, a daisy-wheel printer is often used. it’s known as a flower-wheel printer as a result of the print mechanism appears like a daisy. Its speed is slow usually 25-55 characters per second.

c).Line printers: Line printers it also called line-at-a-time printers, use a special mechanism that may print a full line at once they’ll usually print the vary of one,200 to 6,000 lines per minute.

d).Drum printer: A line-at-a-time printer consists of a solid, cylindrical drum that has raised characters in bands on its surface. amount of print positions across the drum equals. This range usually ranges from 80-132 print positions. Typical speeds of drum printers area unit within the vary of three hundred to 2000 lines per minute.

e)Chain printers: A chain printer uses a series of print characters wrapped around 2 pulleys Speeds of chain printers vary from four hundred to 2500 characters per minute.

f).Band printers: A band printer operates just like impact printer except it uses a band rather than a series and has fewer hammers.

2. Non-impact printers: Non-impact printers don’t use a putting device to provide characters on the paper,  these printers don’t hammer against the paper they’re a lot of quieter. Following area unit some non-impacted printers.

a).Ink-jet printers: dot printer printers add identical fashion as dot-matrix printers within the type pictures or characters with very little dots. However, the dots area unit fashioned by small droplets of ink. dot printer printers type characters at the speed of roughly 250 characters per second. The ink is absorbed into the paper and dries instantly. the varied colors of ink may also be used.

b).Laser printers: A electrostatic printer works sort of a photocopy machine. optical device printers turn out pictures on paper by leading a beam of light at a mirror that bounces the beam onto a drum.

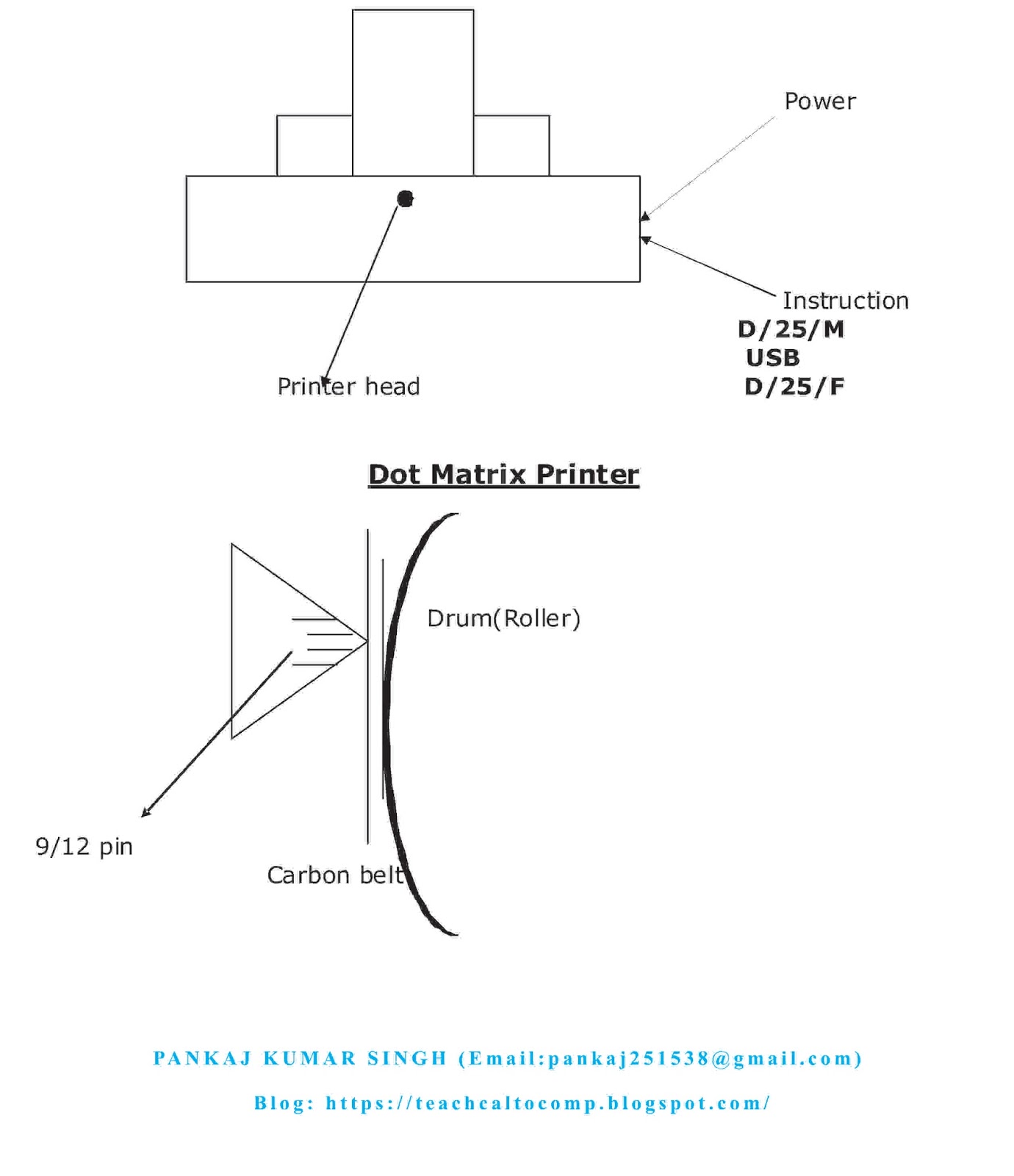

Dot Matrix Printer
Printer head,Drum or Roller ,Color belt
Paper ,Roller,Spray ,Narrow Hole
Tones(Black Powder,cleaner,laser with static charge, heater
